What is the Halation Effect? A Guide to Authentic Film Glow with Dehancer

In the world of digital color grading, the chase for the elusive "film look" often comes down to imperfections. Modern digital sensors are incredibly clean, clinical, and sharp. Analog film, however, is organic, chemical, and full of beautiful optical flaws.

One of the most sought-after of these organic flaws is Halation. It is a subtle, yet powerful cue that subconsciously tells the viewer they are watching something cinematic and timeless.

This article will define exactly what halation is based on the physics of real film, why you need it, and how the Dehancer Pro plugin offers one of the most accurate emulations available today.

The Science Behind the Glow: What Exactly is Halation?

If you look closely at vintage movies or photographs, you will often see a soft, usually red-orange glow surrounding very bright light sources, contrasting edges, or specular highlights. This is halation.

The Physics of Film Layers

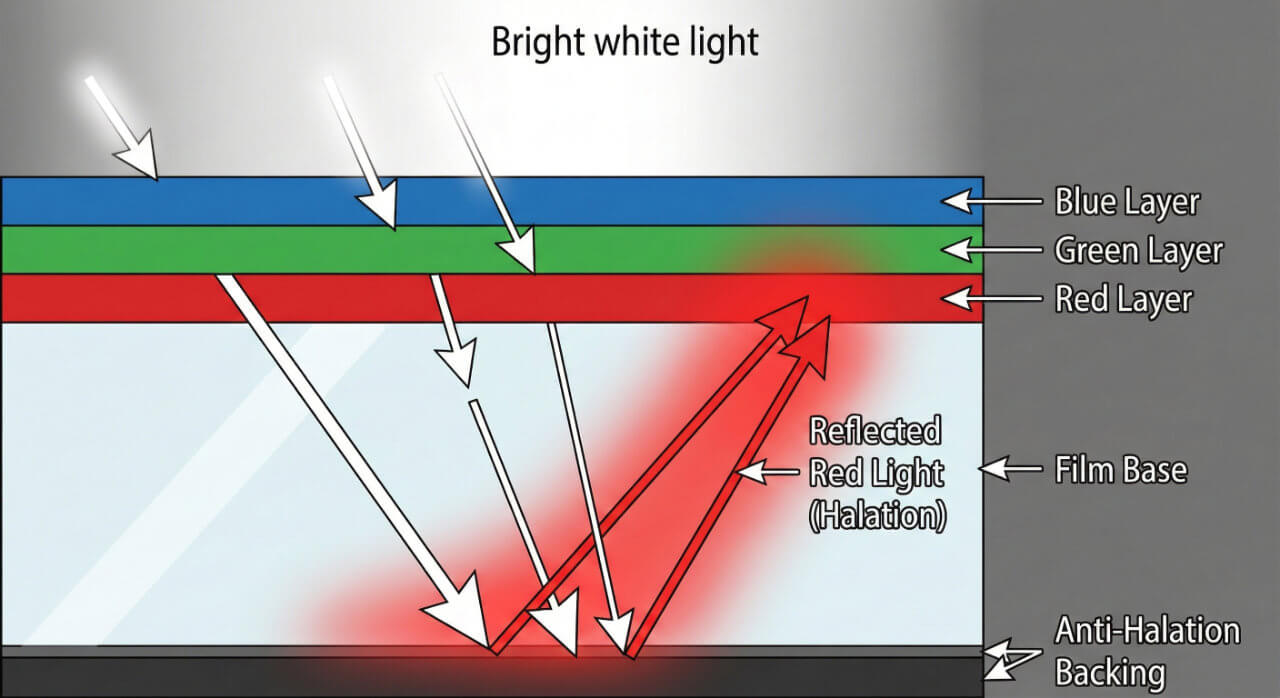

To understand halation, we have to understand the structure of photographic film stock. Film is composed of multiple layers stacked on a transparent plastic base. The primary layers are emulsions sensitive to different wavelengths of light: the blue-sensitive layer on top, followed by green, and finally the red-sensitive layer at the bottom, closest to the base.

Here is what happens during exposure to create halation:

1. Light Penetration: Intense light from a bright source (like a lightbulb or the sun) hits the film. It passes through the blue and green layers, exposing them normally.
2. Passing the Base: The light carries on through the red layer and the transparent film base.
3. The Bounce (Reflection): On the very back of the film stock, there is an "anti-halation backing" (rem-jet) designed to absorb excess light. However, extremely bright light can overwhelm this backing. The light scatters off the back surface and reflects backwards into the film.
4. The Red Exposure: Because the red-sensitive layer is closest to the back base, this scattered, reflected light exposes the red layer from behind.

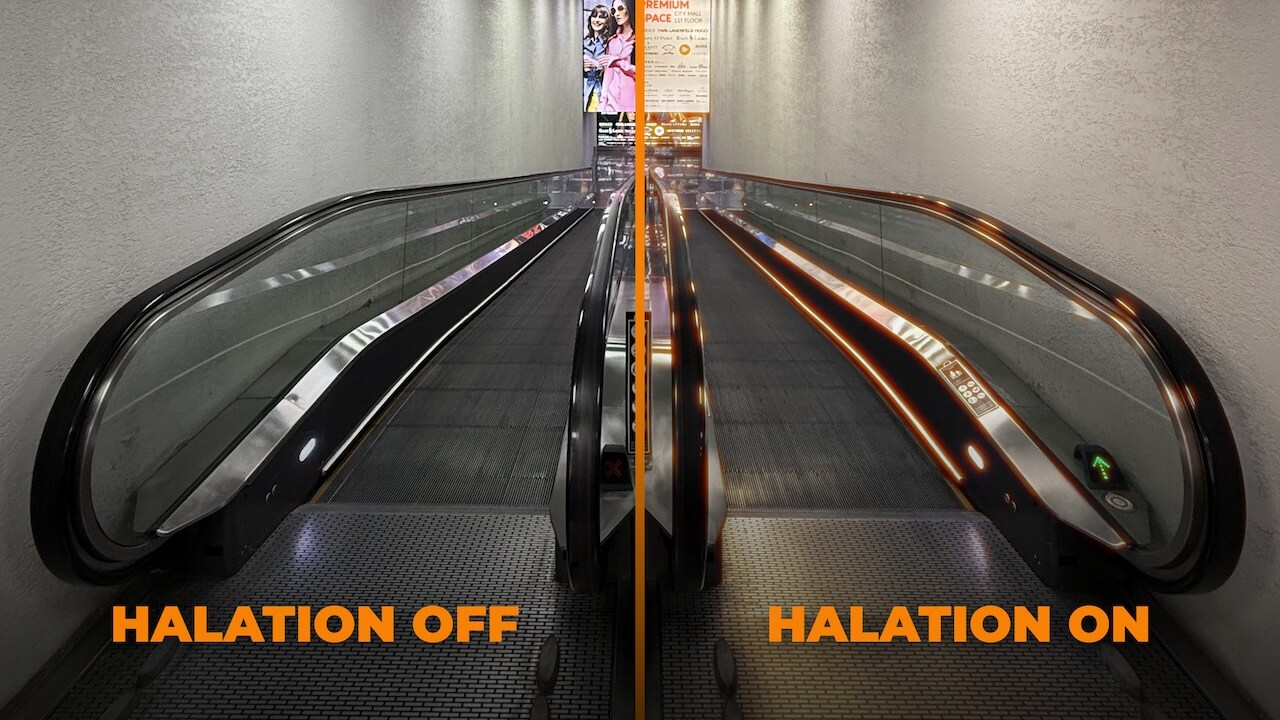

The result? A diffused halo of red light around bright objects. It is most noticeable in areas of high contrast, like a bright window in a dark room or streetlights at night.

Why Digital Footage Needs Halation

Digital sensors absorb light; they don't reflect it back into neighboring pixels. This results in hard, surgical edges around highlights. By adding Halation in post-production, you introduce:

• Signal Integration: It helps blend bright highlights into the surrounding mid-tones, making the roll-off smoother.
• Organic Volume: It adds a sense of "air" or atmosphere to the image.
• Warmth: It introduces a subtle, skin-tone-friendly warmth to high-contrast edges.

Mastering Halation in Dehancer Pro

While many plugins offer a "glow" effect, Dehancer is unique because it simulates the actual physics described above. It doesn't just blur the image; it calculates the diffraction and scattering based on film emulsion profiles.

Based on the official Dehancer Halation documentation, here is how to control the effect effectively:

Key Parameters Explained

Dehancer Pro offers two ways to generate Halation: using accurate Film Profiles for quick, realistic results, or switching to Custom Mode for granular manual control.

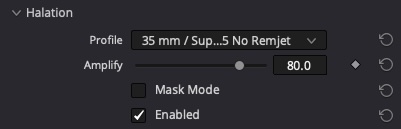

Method A: Using Film Profiles (The Quick Way)

This is the default view. It simplifies the complex physics into presetting film stocks while still giving you control over the intensity and placement.

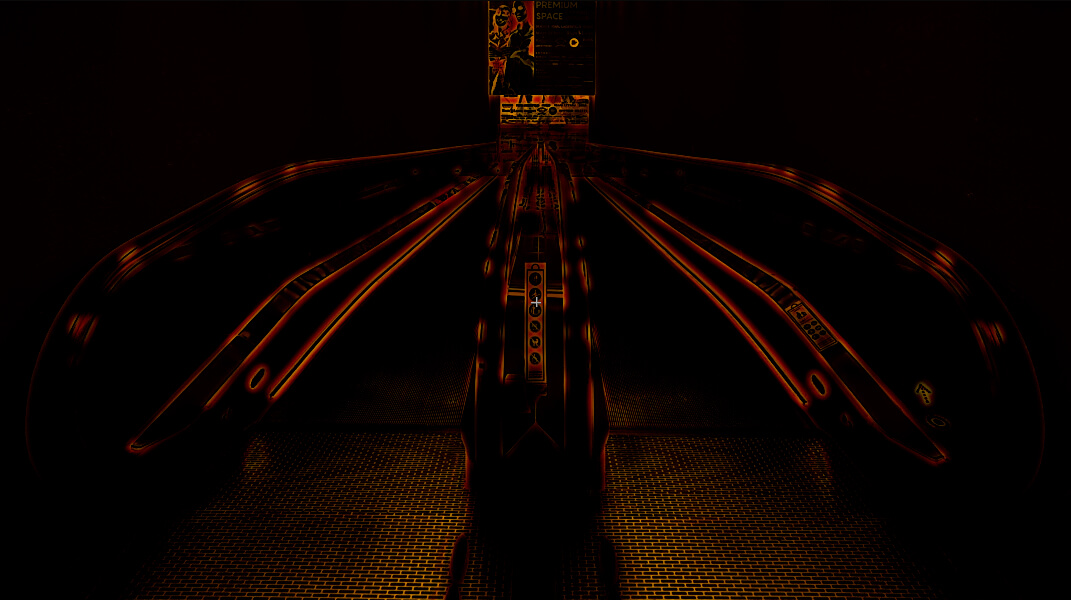

• Mask Mode (Crucial): Always check this box first. It shows a black-and-white map of exactly where the halation will appear, helping you isolate highlights without guessing.



• Amplify: This is your master intensity slider. It controls the opacity and sensitivity of the effect. If a chosen profile feels too strong, simply dial this down.

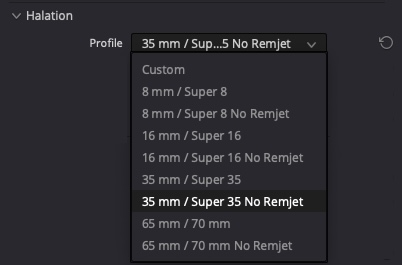

• Profile (The Film Gauge): This sets the physical scale of the emulation.
  • 8mm / 16mm: Simulate smaller film strips. Because the frame is smaller, the red halation glow appears larger and softer relative to the image detail.
  • 35mm / 65mm: Simulate standard and large-format cinema film. The halation is tighter, sharper, and more refined.
• "No Remjet" Options: You will see two versions of each profile (e.g., 35mm vs 35mm No Remjet).
  • Standard: Simulates film with the Anti-Halation Backing (Remjet) intact. This creates a subtle, controlled red glow around only the brightest highlights.
  • No Remjet: Simulates film where the protective black layer has been removed (similar to the CineStill 800T look). This creates intense, bleeding red halos that spill noticeably into shadows.

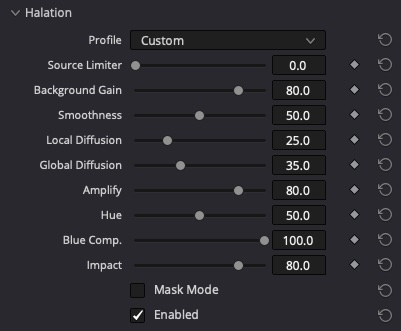

Method B: Custom Mode (The Advanced Way)

If you select "Custom" from the top of the Profile dropdown, the interface expands to reveal the underlying physics sliders. (Note: Mask Mode and Amplify work exactly the same here as in Method A).

• Source Limiter: The sensitivity threshold. Lowering this allows halation to appear on mid-tones (more glow); raising it restricts the effect to only the absolute brightest light sources (cleaner image).
• Background Gain: Controls how much the halation spills into the darker areas surrounding the light. Increase this if you want the glow to be visible against a dark night sky.
• Smoothness: Mimics the physical scattering of light inside the emulsion. It determines if the halo is "sharp" (tight to the edge) or "soft" (diffused).
• Local Diffusion: Controls the intensity of the immediate red ring around the light source (the core Halation).
• Global Diffusion: Simulates wider light scattering (secondary glare). While similar to "Bloom," this is physically calculated as part of the film base reflection.
• Hue: Real film halation is red (due to the red layer being at the back), but this slider allows you to shift the color to yellow-ish.
• Blue Comp. (Blue Compensation): Because halation adds a heavy red layer, it can sometimes turn bright white lights pink or magenta. This slider recovers the original blue channel in the highlight core. Increasing this ensures your bright lights stay white in the center, while keeping the red glow only on the edges.
• Impact: This controls the "punch" or gamma of the halation effect. Increasing Impact makes the glow physically brighter and more aggressive. Use this if the halation feels too faint even when Amplify is at 100%.

Summary of the Dehancer Workflow

Authentic film halation is rarely an overwhelming special effect; it is a subconscious texture.

1. Choose your path: Select a preset Profile (like 35mm No Remjet) for an instant look, or select Custom to build from scratch.
2. Visualize: Enable Mask Mode to see exactly which highlights are triggering the effect.
3. Refine: Use Source Limiter (in Custom) or swap Profiles to ensure skin tones don't glow unnaturally.
4. Blend: Disable Mask Mode and use Amplify to dial the strength to a tasteful level.

Conclusion: Get the Look

Halation is the secret sauce that separates "video" from "cinema." It softens the harsh digital edge and binds your highlights to your shadows with an organic red glue.

Dehancer Pro handles this not as a simple blur filter, but as a deep physical simulation, giving you the most accurate results available.
